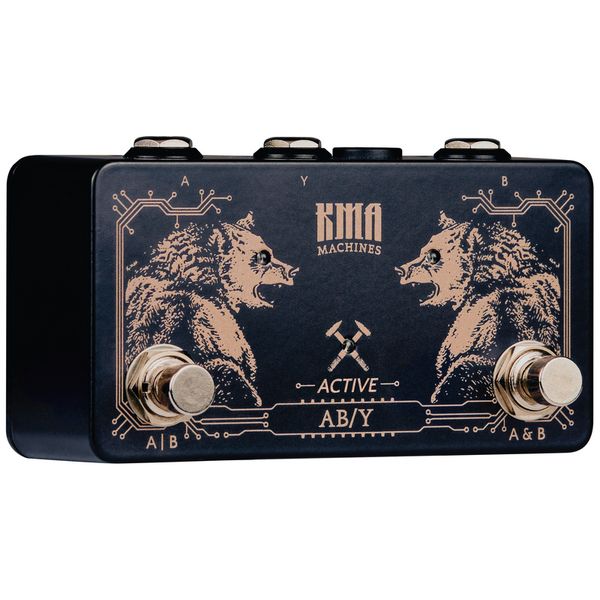

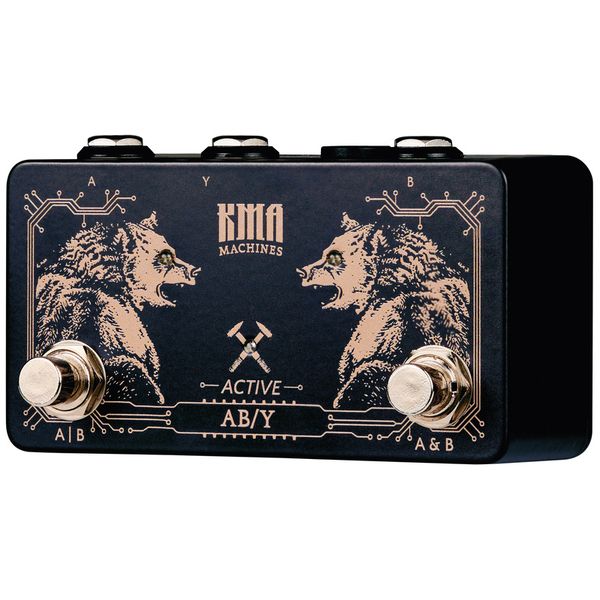

KMA Audio Machines Active AB/Y Switch
Specs :
- Switches or combines a mono input signal to two separate outputs
- Switches or combines two separate input signals to one output
- Phase and Y direction switch for greater flexibility
- Active noiseless relay-based switching reduces mechanical noise and unwanted clicks
- True bypass

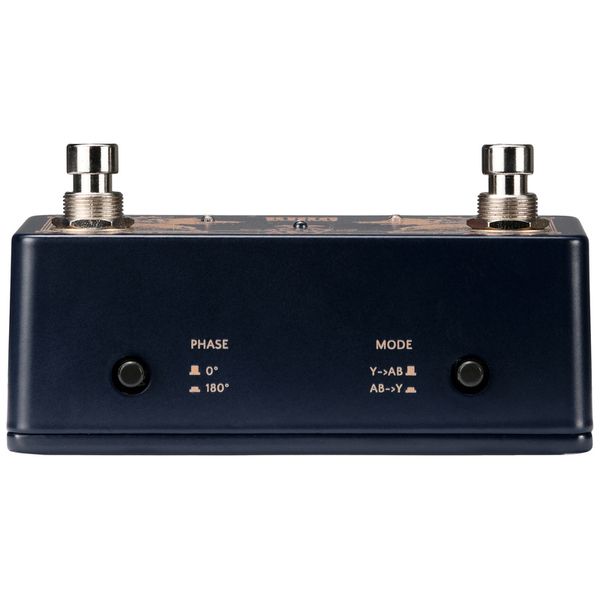

- Switch: Phase, Y Direction (Y->AB / AB->Y)
- Foot switch: A / B, A and B

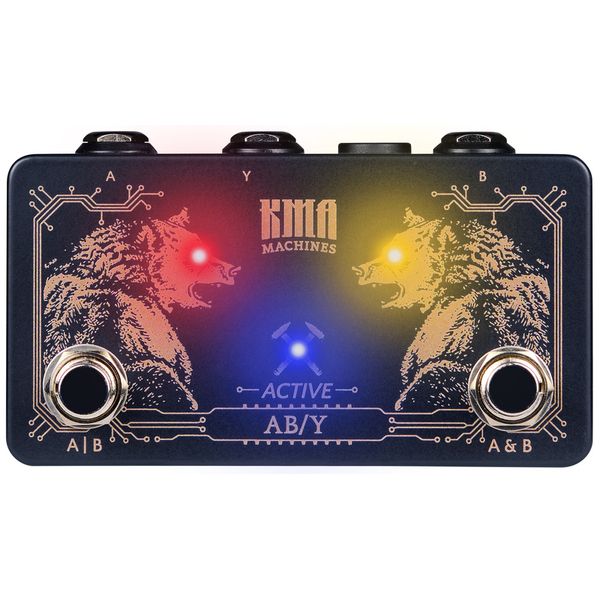

- LED: A, B ,Y

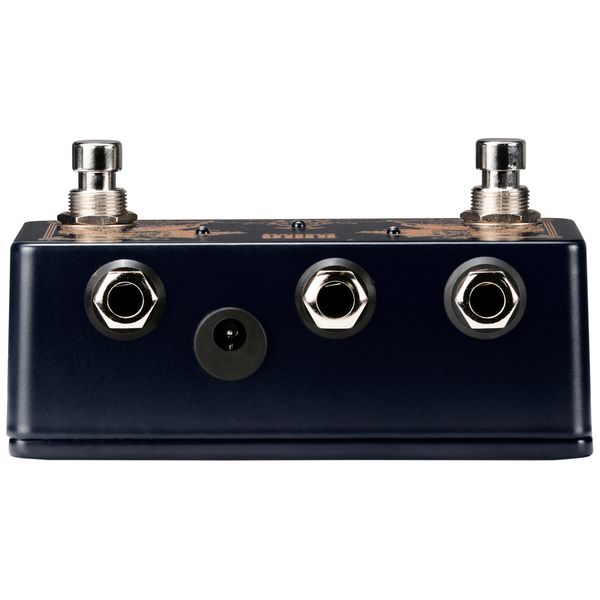

- A input: 6.3 mm mono jack
- B input: 6.3 mm mono jack
- Y output: 6.3 mm stereo jack
- Durable, compact housing
- Current consumption: 40 mA
- Power supply via 9 V DC mains adapter (2.1 x 5.5 mm barrel connector, centre negative)
- Dimensions (W x D x H): 112 x 65 x 56 mm
- Weight: 180 g
- Handmade in Germany
- Recommended power supplies Cioks DC-7 or Cioks SOL (not included)
NB - Battery operation not supported.
